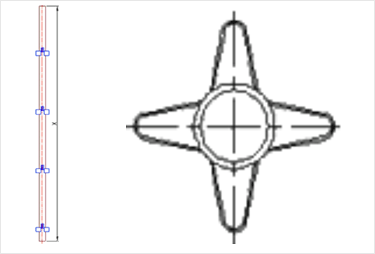

Wedglock


Dimension Between
The Post (x)
1000 1500 2000 2500 3000
Size (hollow) Ø48.3
All Dimensions Are In Mm

Wedgelock is a modular System Scaffold, with wedge fixing for all access Scaffold requirements. The wedge fixing of the ledgers and transoms gives a simple and fast means of erecting access scaffolding without loose parts. Rigid 4 way Fixing gives a positive location without movement, spigot and Wedge fitting on the Standard to give guaranteed Vertical alignment.

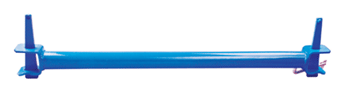

Ledgers/horizontals

Dimension Between
The Post (x)
1000 1250 1500 1800 2500
Size (Hollow) Ø48.3
All Demensions are in MM

Ledgers are horizontal tubes which connect between the standards. Transoms rest upon the ledgers at right angles. Main transoms are placed next to the standards, they hold the standards in place and provide support for boards; intermediate transoms are those placed between the main transoms to provide extra support for boards

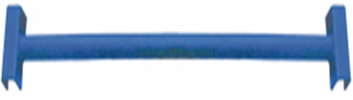

Intermediate Transoms


Dimension Between
The Post (x)
1000 1250 1500 1800 2500
Size (Hollow) Ø48.3
All Demensions are in MM

These give additional support to the structure by placing them at different levels horizontally from one ledger to another. Sizes available are same of ledgers. Available in various standard lengths to suit your requirements.

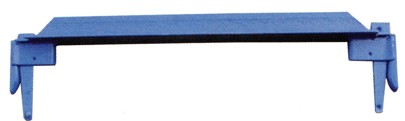

Angle Transoms


Dimension Between
The Post (x)
1000 1250 1500 1800 2500
Size (Angle) 40x40x5
All Demensions are in MM
